RB951Ui-2HnD

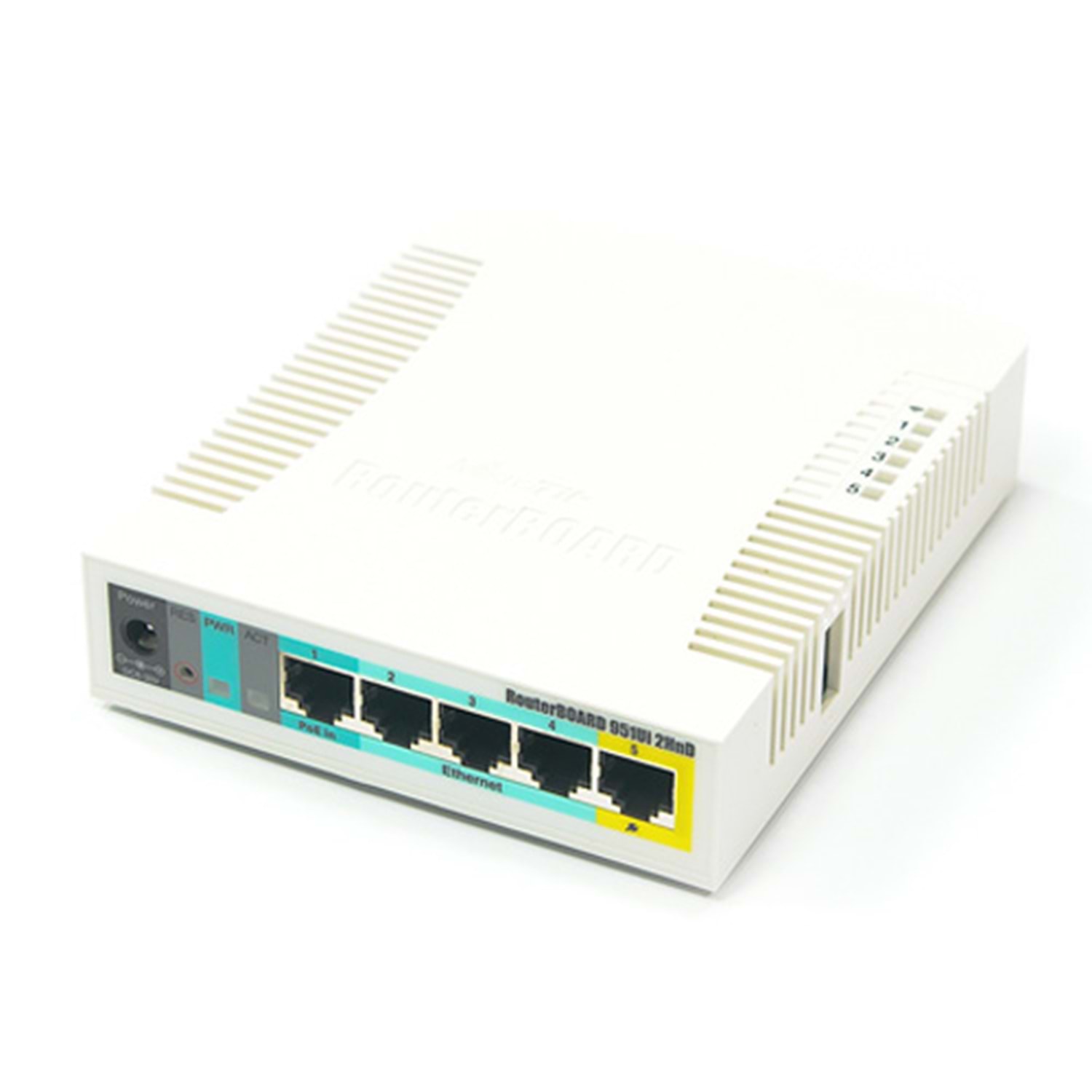

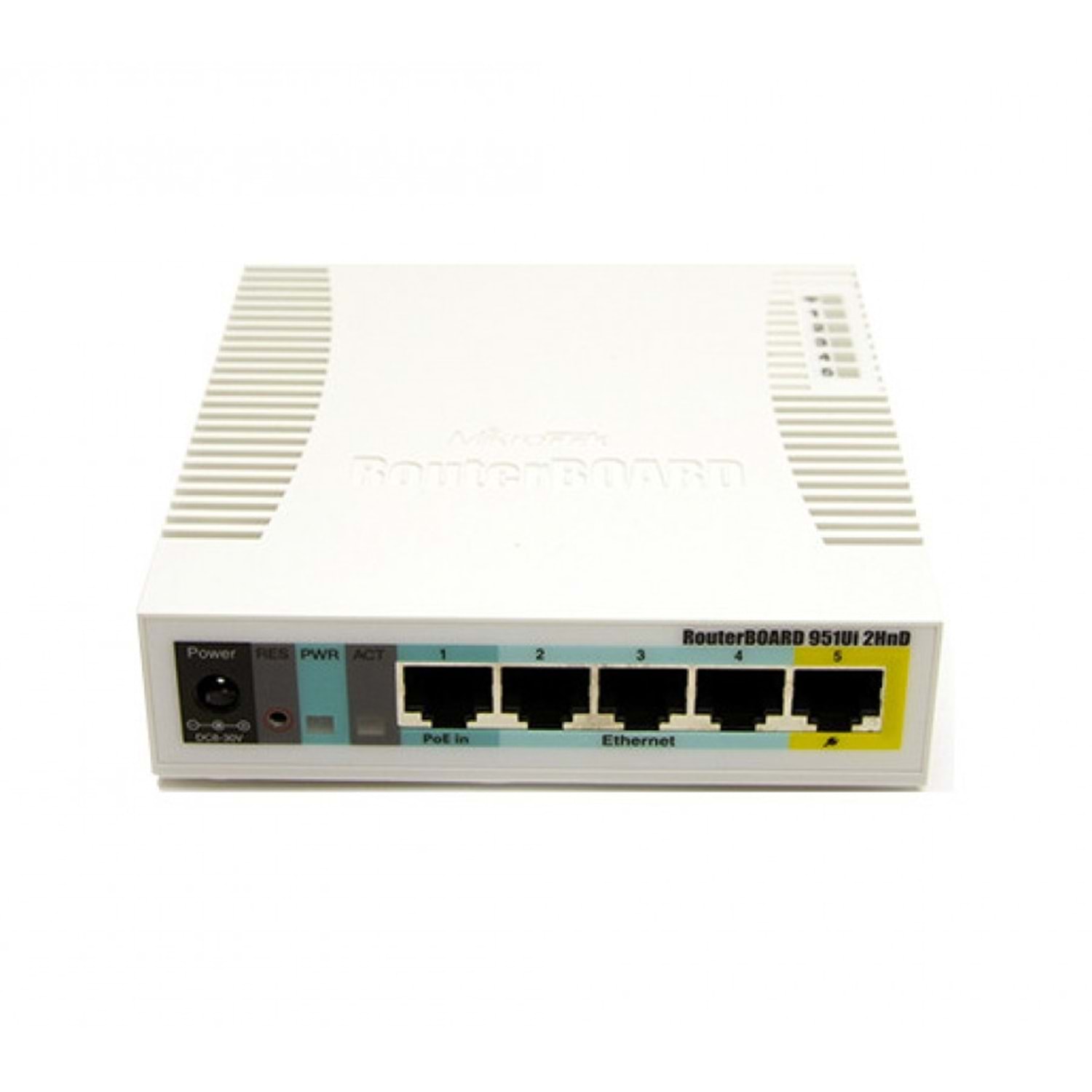

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.



It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied

to the unit. Maximum load on the port is 500mA.



Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

Product specifications

Wireless specifications

Included parts

24V 0.8A power adapter



Performance test results

1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)


2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes


3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out


4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
